Industrial ball valve full bore F.F. with locking cap. EN10226 THREAD

680/Q

Industrial ball valve full bore F.F. with locking cap. EN10226 THREAD

MATERIALS AND CHARACTERISTICS

WORKING CONDITIONS

TECHNICAL DATA SHEET

Industrial ball valve full bore F.F. with locking cap. EN10226 THREAD
Cod. 0680/04CQ 0680/05CQ 0680/06CQ 0680/07CQ 0680/08CQ 0680/09CQ 0680/10CQ 0680/11CQ 0680/13CQ
DN e PASS. mm 1/2”
(15)
3/4”
(20)
1”
(25)
1”1/4
(32)
1”1/2
(40)
2”
(50)
2”1/2 (60) 3”
(74)
4”
(94)

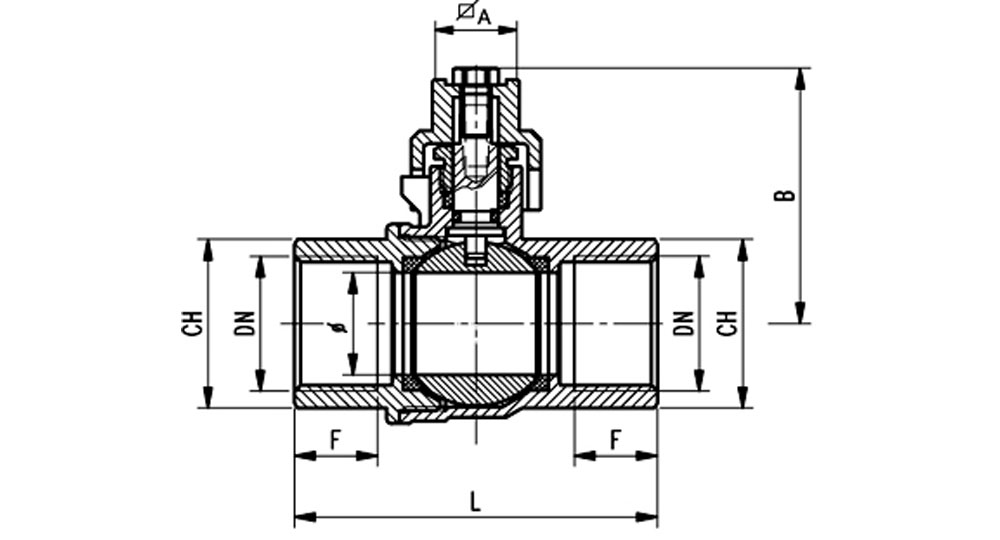

L 62 71 81,5 92 102 126 138 161,5 181
B 45 49 61 66,5 81 87,5 115 128,5 152
F 15 16,3 19,1 21,4 21,4 26 26 27 28
CH 26 31 38 48 55 68 85 98 123
A 17 17 17 17 22 22 26 26 36
